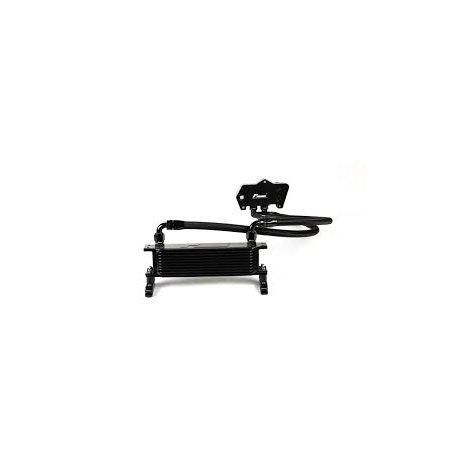

Racingline DSG Oil Cooler System for MQB DQ381 (7 Speed Only) - VWR29DQ381
It's not just your engine oil that you need to protect. Your DSG gearbox is susceptible to overheating. And the higher your power, the harder you drive, the more important it is to protect it
Under hard driving, the factory DSG oil/water cooler is easily overwhelmed. Problems start to occur when oil cannot dissipate its collected heat fast enough and the oil begins to thin and degrade €“ losing its lubrication properties.
- When this happens, the DSG will protect itself and begin to lower the torque, increase shift times and in extreme circumstances even loose gear selection.
- The RacingLine kit solves this problem: by adding in an additional air/oil cooler positioned right in the airflow at the front of the car, oil temperatures are reduced by around 15 €“ 20 degrees centigrade (of course dependant on how the car is being used, ambient temps and state of tune).
- The kit uses a clever design which retains the factory oil/water cooling and adds to it with the thermostatically-controlled front-mounted cooler €“ doubling up your cooling capability when it's needed with less heat transfer into the water system.
- Only when the oil exceeds normal temperatures, the thermostat opens. Oil temperature then drops significantly as it is pumped through the densely packed fins of the 10-row cooler's large surface area mounted right in the cool airflow.
What's included in the kit
- Oil cooler mounting brackets
- AN10 210 series Nylon braided feed and return line
- Billet CNC thermostatic adaptor block
- Replacement, low-profile oil/water cooler
- AN10 10-row oil/air cooler core
- Fitting kit containing all necessary nuts, bolts, washers and rubber mounting bobbins
The kit for all MQB cars comes supplied with two bracket kits. One kit is for Audi S3 models, the other is for all Golf 7 and other MQB models. Mounting for the bracket set requires drilling bolt holes through the front crash bar.
Product Variations
DSG DQ250 6-SPEED VWR29G7250 - See alternate listing!
DSG DQ381 7-SPEED VWR29DQ381 - This product
